Floor construction (from bottom to top):
- Steel frame made of square profiles, fully hot-dip galvanized
- Rubber sheet 5 mm
- Aluminum sheet 2 mm
- Airtight, vapor-permeable, and water-repellent underlayment
- Wooden frame made of spruce/fir 100 x 40 mm
(in the edge area 100 x 100 mm) - Insulation made of EPS insulation boards 100 mm
- Multiplex board 15 mm
- Insulating foil
- Easy-care vinyl or laminate flooring in a choice of decor
Exterior wall construction (from outside to (inside):
- Louvre panel Monkey-Sidings Slim, lignum light shadow (horizontal)
or in different color at an extra charge - 20 x 40 mm spruce/fir wooden battens
- Airtight, vapor-permeable, and water-repellent underlay
- 100 x 40 mm spruce/fir timber frame
(100 x 100 mm at the house corners and rafter support beams) - 100 mm mineral fiber insulation (winter-proof insulation)
- Vapor barrier
- Profiled wooden cladding (horizontal) made of spruce/fir, 20 mm
- Bathroom interior paneling made from Fibo wall elements, a high-quality and aesthetic wall system with a 25-year warranty. The wall elements are available in a variety of styles, whether you prefer a traditional look, bold high-gloss colors, or nature-inspired tones like marble and concrete.
Or, for an additional charge, in genuine natural stone veneer.
Ceiling structure (from top to bottom):
- Easy-care vinyl or laminate flooring in your choice of decor
- Insulating foil
- Multiplex board 15 mm
- Load-bearing wooden ceiling beams made of spruce/fir 100 x 40 mm
- Insulation made of 100 mm mineral fiber
- Profiled wood cladding (horizontal) made of spruce/fir 20 mm
Roof structure (from outside to inside):
- Trapezoidal sheet metal roof painted in the color of your choice
- Wooden battens made of spruce/fir, 20 x 40 mm
- Airtight, vapor-permeable, and water-repellent underlay
- Wooden rafters made of spruce/fir, 100 x 40 mm
- Vapor barrier
- Profiled wooden cladding (horizontal) made of spruce/fir, 20 mm
Windows and Entrance Door:
- Plastic entrance door with triple locking and 3 security keys in the color of your choice, size as per floor plan.
- Plastic windows and French doors, double-glazed with laminated safety glass in the color of your choice, size as per floor plan.
Note: Operation on public roads is NOT permitted without laminated safety glass!
Bathroom:

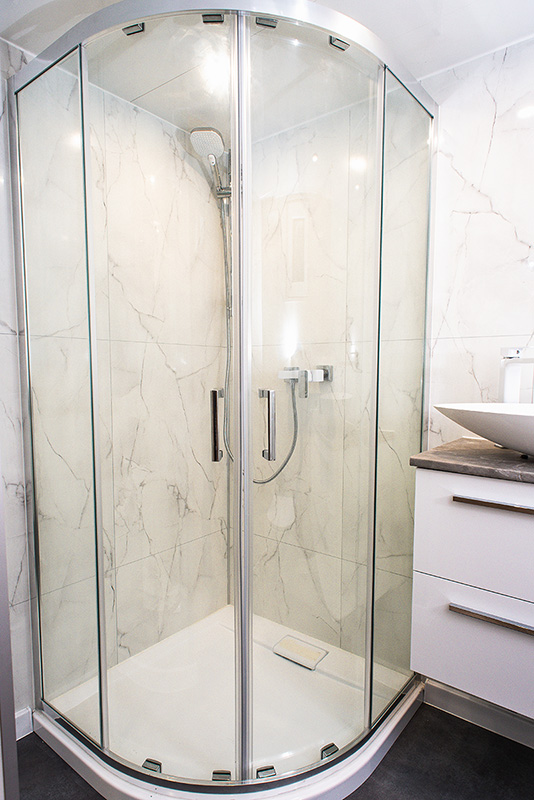

- Semi-circular corner shower tray 80 x 80 cm with real glass shower enclosure made of laminated safety glass with 2 sliding doors and a designer shower system with massage jets for an exceptional showering experience.

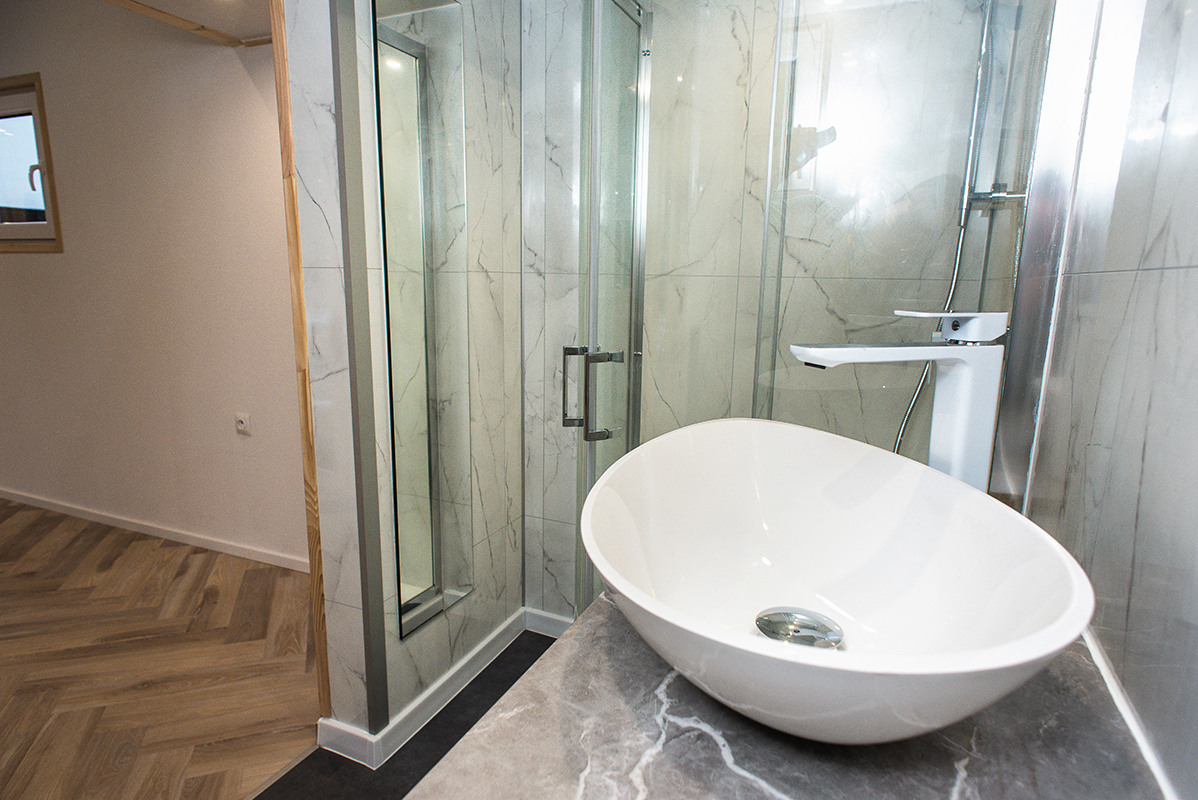

- Ceramic vanity with vanity unit and chrome-plated single-lever mixer tap.

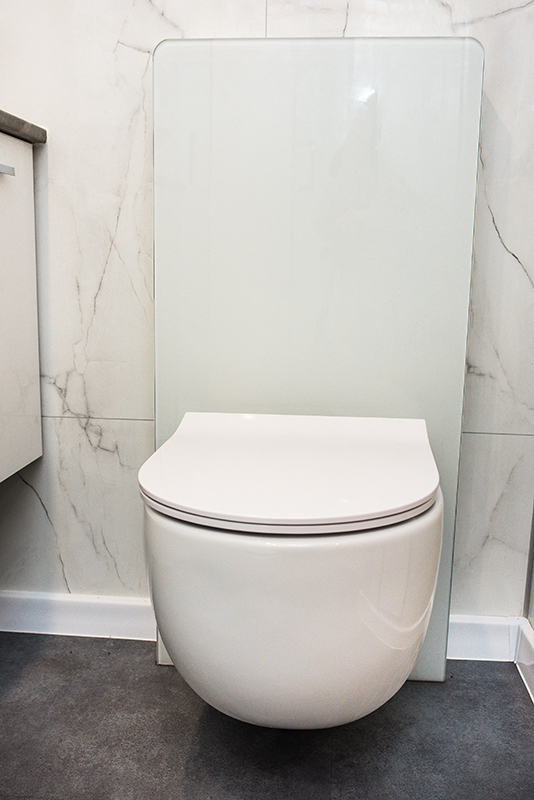

- Wall-mounted rimless ceramic toilet and toilet seat with automatic lowering and toilet cistern with an elegant glass and aluminum finish in white or black.
Plumbing connections:
- Permanent wastewater connection for gray water from a high-pressure pipe below the floor
- Permanent wastewater connection for black water from a high-pressure pipe below the floor
- Permanent fresh water connection below the floor
Self-sufficient fresh water/wastewater package:
Upon request, we offer a fresh water tank with an automatic pump and two separate wastewater tanks for gray and black water for an additional charge. This makes your tinydomo suitable for camping.
Electrical system:
- 230V charging connection
- Electrical distribution with fuse box with residual current device and 6 individual fuses
- Sockets:
Living and kitchen area: 6 sockets, bathroom: 1 socket, children’s/guest area: 2 sockets, sleeping area: 2 sockets, outdoor area: 2 sockets - Satellite antenna cable with connection socket in the living area
- Lighting:
Living and kitchen area: 6 sockets, bathroom: 1 socket, children’s/guest area: 2 sockets, sleeping area: 2 sockets, outdoor area: 2 sockets - Washing machine connection
LPG supply:
- LPG socket with 30 mbar pressure reducer for direct connection to liquid consumers.
Heating/Hot Water
- Samsung Comfort air conditioner with heating function, with a heating output of up to 3.5 kW and 12,000 BTU, featuring Wind-Free Cooling technology for even heating and cooling (energy efficiency class A++ for heating / A+ for cooling) with whisper mode, auto-clean function, and Wi-Fi functionality for smartphones with up to 68% energy savings thanks to inverter technology.
- Electric hot water heater25-liter water tank
- Electric underfloor heating
Self-sufficient power supply/Self-sufficient energy package:
Upon request, we offer a photovoltaic system with battery storage for self-sufficient power supply, as well as a whisper-quiet liquid gas emergency generator for days on which the photovoltaic system is not operating due to weather conditions, for an additional charge.
Interior fittings/Furniture:

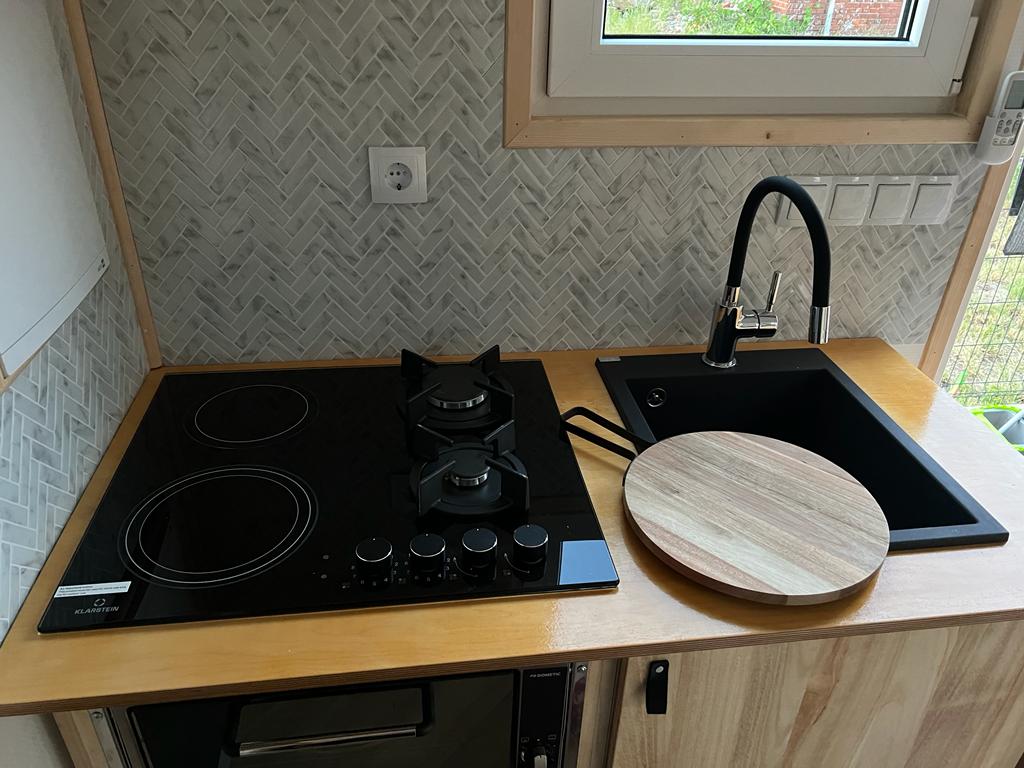

- Compact kitchen with worktop, sink with faucet, combo cooktop with 2 electric and 2 gas burners, base cabinet, refrigerator-freezer, and dishwasher

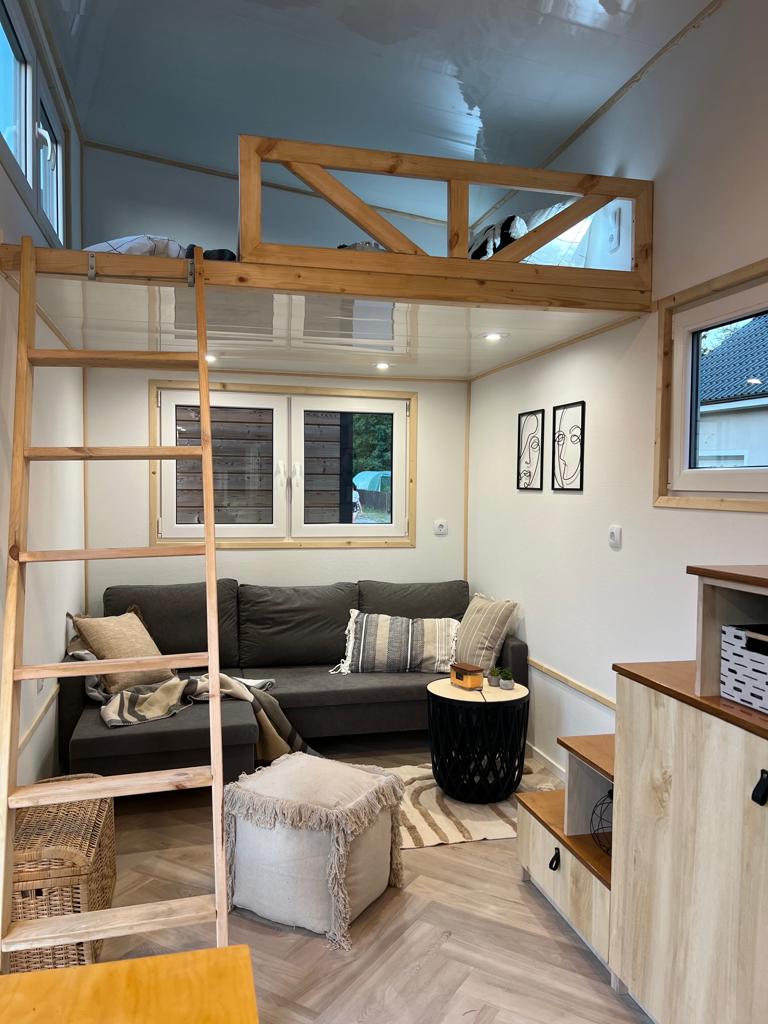

- Practical storage stairs leading to the loft above the Bathroom
Other:
The standard equipment can be optionally supplemented or modified for an additional charge. Extensive options are available for the design of the facade, doors and windows, interior, bathroom, and furnishings.

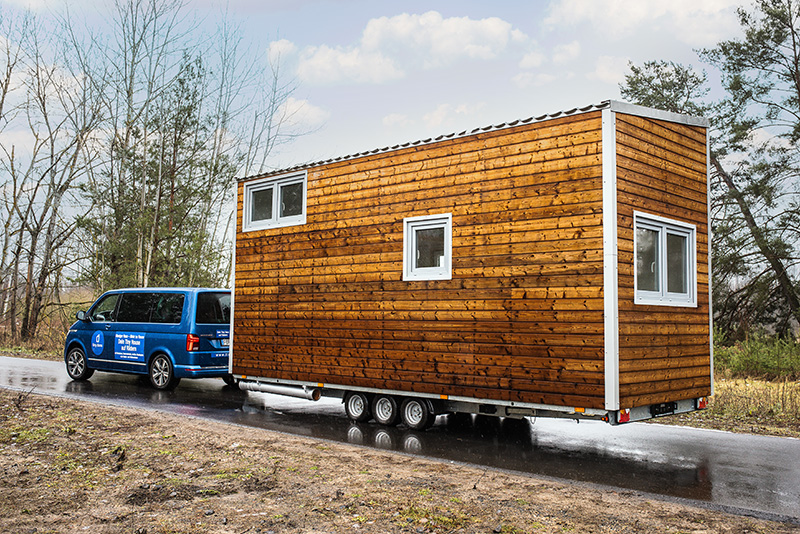

All tinydomo models feature our PickUp & Go System and can therefore be easily transported to another location with a trailer at any time, in case you move later and want to take your tinydomo with you.
Delivery time is generally 3-4 months from receipt of the contractually agreed down payment of 30% of the purchase price.
Our current terms and conditions apply.
*The stated price refers to the mobile version with a built-in tiny house trailer (can be detached from the house body at any time), which can be optionally purchased for an additional charge ►see accessories in our online shop!
**The photos shown are sample photos, some of which may show optional equipment and additional services for which an additional charge is required!
