Floor structure (from bottom to top):
- Steel frame made of square profiles, fully hot-dip galvanized
- Rubber sheet 5 mm
- Aluminum sheet 2 mm
- Airtight, permeable, and water-repellent underlay
- Wooden frame made of spruce/fir 100 x 40 mm
(100 x 100 mm in the edge area)
Exterior wall structure of our permeable climate wall (from outside to (inside):
- Profiled wood cladding (horizontal or vertical) made of 20 mm spruce/fir, painted in the color of your choice
or, for an additional charge, 3D ThermoWood® cladding Luna Trio 26 x 92 mm. Untreated, it develops a beautiful, naturally grayed patina. Lunawood products were, among others, winners in the “Sustainable Product” category at the Architecture MasterPrize 2021. Or, for an additional charge, 2-layer, vapor-permeable mineral render in your choice of color.
Wooden battens made of spruce/fir 20 x 40 mm
(for mineral render: solid, vapor-permeable, lightweight panel made of expanded glass VeroBoard® AllStar 20 mm) - Airtight, vapor-permeable, and water-repellent underlayment
- Wooden frame made of spruce/fir 240 x 40 mm
(at the house corners and rafter support beams 240 x 100 mm)
(for the final construction of the exterior wall according to our turnkey construction and equipment description, the U-value of the Exterior wall 0.14 W/m²K)
Ceiling structure (from top to bottom):
- Load-bearing wooden ceiling beams made of spruce/fir 100 x 40 mm
Roof structure of our diffusion-open climate roof (from outside to inside):
- Trapezoidal sheet metal roof painted in the color of your choice
- Wooden battens made of spruce/fir 20 x 40 mm
- Airtight, diffusion-open, and water-repellent underlayment
- Wooden rafters made of spruce/fir 240 x 40 mm
(during final roof construction according to According to our turnkey construction and equipment description, the U-value of the roof is 0.14 W/m²K)
Roof drainage:
- Plastic gutters and downpipes.
Windows and entrance door with a U-value of 0,5 W/m²K:
- Plastic entrance door with triple locking and 3 security keys, with tripple thermal insulation glazing in the color of your choice, size according to the floor plan drawing.
- Plastic windows and French doors with tripple thermal insulation glazing in the color of your choice, size according to the floor plan drawing.
Assembly/Installation:
Assembly/installation of the tinydomo on the The customer/buyer is responsible for the installation of a foundation/floor slab constructed by the customer/buyer on their property, as well as the connection of the downpipes for the roof drainage to the standpipes constructed by the customer/buyer.
Building permit planning according to the regulations of the GEG consisting of:
Inventory
- Examination of the foundations and eligibility for approval
- Order and evaluation of current cadastral extract
- Planning
Preparation of building plans
- 1 virtual project meeting
- Floor plan of your building project, including demolition plans if necessary
- Building description
- Preparation of the application for a building permit/change of use in accordance with the respective LBO:
Proof of authorization to submit building plans
- Building application forms
- Operating description
- Building description
- Construction drawings (floor plans, sections, views, site plan)
- Incorporation of the fire protection concept of external specialist planners (if required)
Other:
The standard equipment can be optionally supplemented or modified for an additional charge. Extensive options are available for the design of the facade, doors and windows, interior, bathroom, and furnishings.

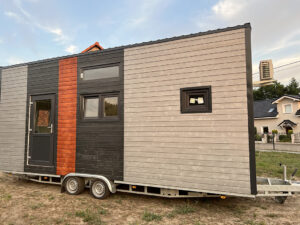

We also offer our prefabricated houses, optionally for an additional charge, with the technical components ready, including plumbing (without plumbing fixtures and fittings), electrical installation, a solar system with battery storage for self-generated power, as well as heating and hot water installation.

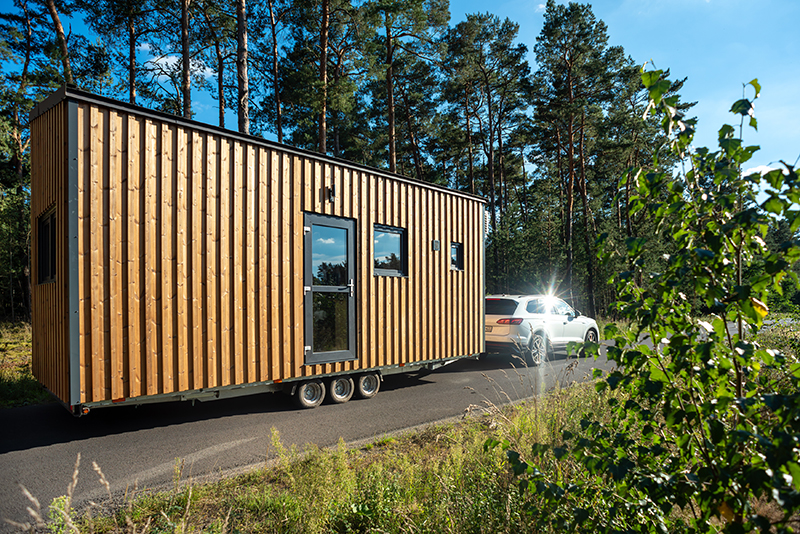

All tinydomo models are equipped with our PickUp & Go System and can therefore be easily transported to another location with a trailer at any time, in case you move later and want to take your tinydomo with you.
Delivery time is generally 3-4 months from receipt of the contractually agreed down payment of 30% of the purchase price.
Our current terms and conditions apply.
*The photos shown are sample photos, some of which may show optional extras and additional services for an additional charge!
