Floor construction (from bottom to top):
- Steel frame made of square profiles, fully hot-dip galvanized
- 5 mm rubber sheet
- 2 mm aluminum sheet
- Airtight, vapor-permeable, and water-repellent underlayment
- 100 x 40 mm spruce/fir timber frame
(100 x 100 mm at the edges)
Exterior wall construction (from outside to inside):
- Louvre panel Monkey-Sidings Slim, lignum light shadow (horizontal)
or in different color at an extra charge - 20 x 40 mm spruce/fir wooden battens
- Airtight, permeable, and water-repellent underlayment
- 100 x 40 mm spruce/fir wooden frame
(100 x 100 mm at the house corners and rafter support beams)
Ceiling structure (from top to bottom):
- Load-bearing wooden ceiling beams made of spruce/fir 100 x 40 mm
Roof structure (from outside to inside):
- Trapezoidal sheet metal roof painted in the color of your choice
- 20 x 40 mm spruce/fir wooden battens
- Airtight, permeable, and water-repellent Roofing membrane
- Wooden rafters made of spruce/fir, 100 x 40 mm
Windows and entrance door:

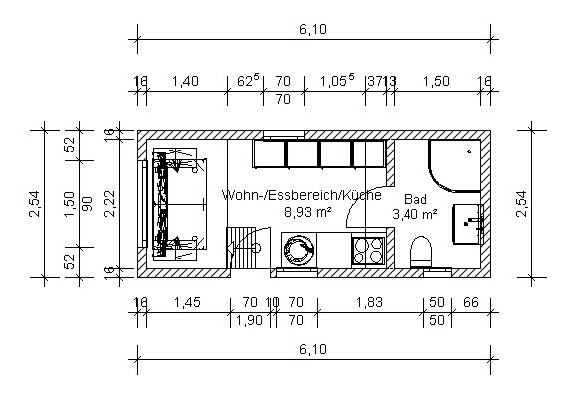

- Plastic entrance door with triple locking and 3 security keys in the color of your choice, size as per floor plan drawing
- Plastic windows and French doors, double-glazed with laminated safety glass in the color of your choice, size as per floor plan drawingNote: Operation on public roads is NOT permitted without laminated safety glass!
Other:
The standard equipment can be optionally supplemented or modified for an additional charge. Extensive options are available for the design of the facade, doors and windows, interior, bathroom, and furnishings.
For an additional charge, we also offer our prefabricated houses ready for installation, including plumbing (without plumbing fixtures and fittings), electrical installation, and heating and hot water installation.

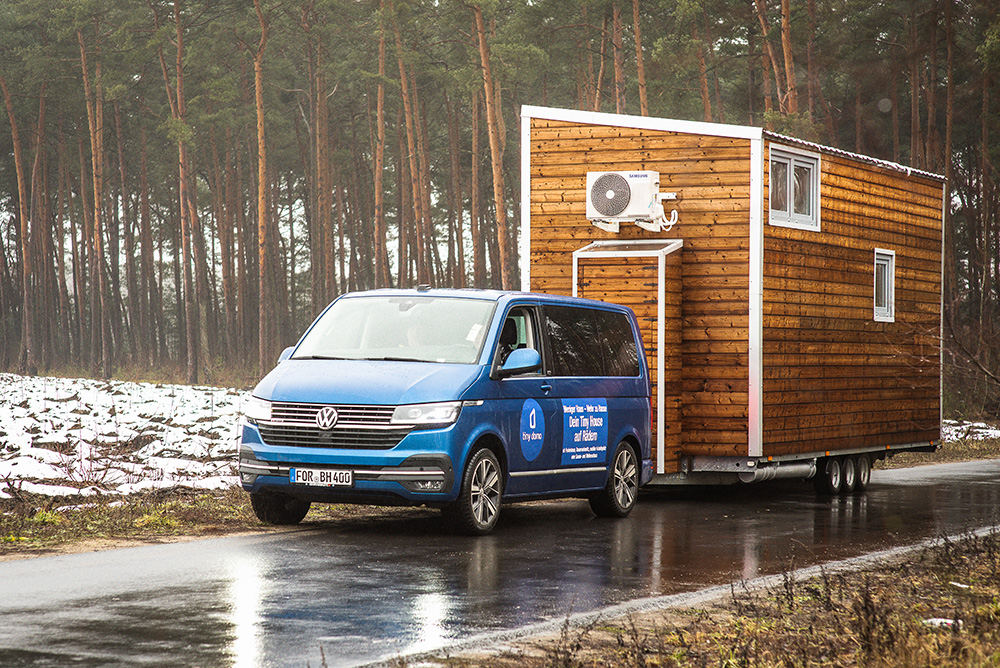

All tinydomo homes are equipped with our PickUp & Go System and can therefore be easily transported to another location with a trailer at any time, in case you move later and want to take your tinydomo with you.
Delivery time is generally 3-4 months from receipt of the contractually agreed down payment of 30% of the purchase price.
Our current terms and conditions apply.
*The stated price refers to the mobile version with a built-in tiny house trailer (can be detached from the house body at any time), which can be optionally purchased for an additional charge ►see accessories in our online shop!
**The photos shown are sample photos, some of which may show optional equipment and additional services for which an additional charge is required!
